A-178-4 I Cover Pull , Handle I Zinc Alloy

RM 66.00
RM 66.00
RM 0.00
Genuine Part | DYNASEIKI eShop
Genuine Part
Quality Warranty | DYNASEIKI eShop
Quality Warranty
Secure Delivery | DYNASEIKI eShop
Secure Delivery
View More

Selling Points:

   Easy installation.
  Aesthetic product appearance.

Feature:

  Craftmanship finishing.
  Easy installation.
  Most widely use by office equipement application.
  Installed with screws both on the front and back of the panel.
  Cover is set up after installation.

Remark:

  Do not remove the resin cover once it has been fitted. Once removed, it cannot be replaced.


 Basic Information
Brand Takigen
Origin of Origin (COO) Japan
SeriesA-178
Sub Parts AvailabilityA-178-0
to
A-178-7
Type Pull
Material Main body: Zinc alloy (ZDC)
Cover: ABS resin (black) )
Finishing
  • Chrome plating (MZCr)
Hanging Load (N)
392N (or 390kg)

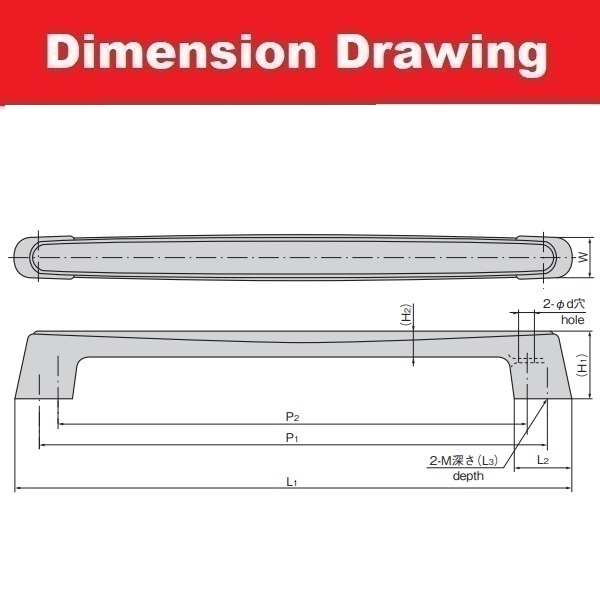

Size Dimension (mm) 146 x 17 x 11
Weight (gram) 125
RoHS 10
Application
  • Large to small-sized refrigerators,
  • cold storage.
  • Showcases.
  • Office Cabinets
Product Sheet Download      A-178-pdf


Part Number
CAD File
(Link to Takigen web)
A-178-4
